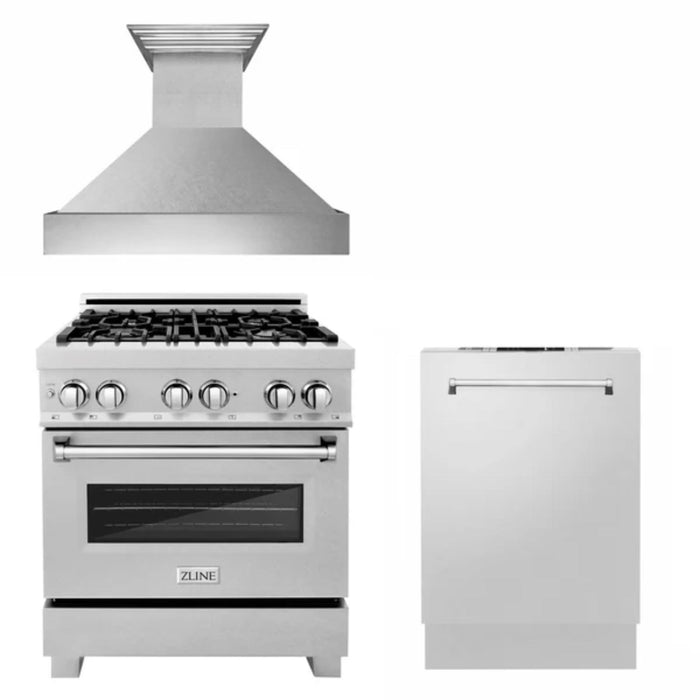

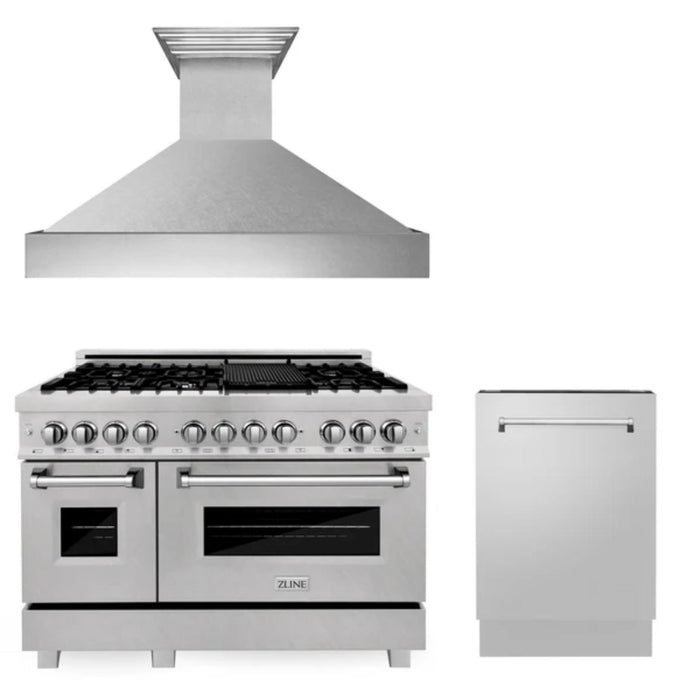

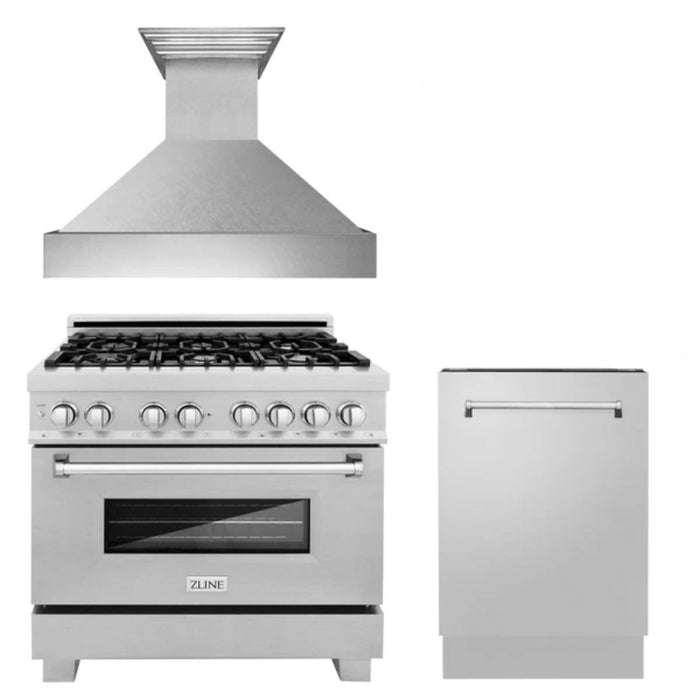

The ZLINE 3KP-RASRH series kitchen packages combine professional-grade appliances with a durable and stylish satin stainless steel finish, designed to elevate your kitchen’s functionality and aesthetic. Each package includes a dual fuel range featuring handcrafted Italian sealed burners delivering precise heat control from 4,200 to 18,000 BTUs and an electric convection oven that ensures even cooking. The convertible vent wall mount range hood offers powerful ventilation with a 4-speed motor and dishwasher-safe stainless steel baffle filters, keeping your kitchen fresh and smoke-free.

Completing the package is a 24-inch tall tub dishwasher with a stainless steel interior, three racks, including a third utensil rack, and quiet operation at 51 dBA. The dishwasher is ENERGY STAR certified and offers multiple wash cycles including a sanitize option, providing efficient and thorough cleaning. Available now at LuxHome Appliances, these packages offer a seamless kitchen upgrade with expert service and competitive pricing.

Dual Fuel Range:

*Burners: Handcrafted Italian sealed burners, 4,200 to 18,000 BTUs

*Oven Capacity: 4.0 cu. ft. (30" & 36"), 6.0 cu. ft. (48") electric convection oven

*Cooktop: Heavy-duty solid-piece cast iron grates with porcelain finish

*Oven Features: SmoothSlide ball-bearing racks, dual lighting, triple-layer insulated glass, StayPut Italian hinges

*Adjustable legs for height 36" to 38.5"

*Includes LP conversion kit

*Voltage: 220-240V / 60Hz / 50A

Convertible Vent Range Hood:

*Motor: High-performance 4-speed motor

*Airflow: Up to 400 CFM

*Lighting: Built-in LED lighting

*Filters: Dishwasher-safe stainless steel baffle filters

*Duct Size: 6" round duct with included transition piece

*Voltage: 110V / 60Hz

Tall Tub Dishwasher:

*Capacity: 24" tall tub with 3 racks including a 3rd utensil rack

*Noise Level: 51 dBA

*Wash Cycles: Multiple including sanitize option

*Interior: Stainless steel

*ENERGY STAR certified

*Voltage: 120V / 15A


Dimensions:

Dual Fuel Range:

3KP-RASRH30-DWV: 29.75W x 27.5D x 36.13H (inches)

3KP-RASRH36-DWV: 36W x 27.5D x 36.13H (inches)

3KP-RASRH48-DWV: 47.75W x 27.38D x 36H (inches)

Range Hood:

30": 30W x 19.7D x 10.5H (inches)

36": 36W x 19.7D x 10.5H (inches)

48": 48W x 19.7D x 10.5H (inches)

Dishwasher: 24W x 24D x 35.9H (inches)

Zline Warranty and Shipping Policy

ZLINE Kitchen and Bath Warranty
ZLINE Kitchen and Bath is dedicated to delivering premium-quality appliances and fixtures, backed by strong warranty coverage that ensures reliability and customer peace of mind.
General Warranty Coverage
ZLINE provides a limited warranty that covers all parts and labor (where applicable) for necessary repairs if any component of the product, or the product itself, is found to be defective in materials or workmanship under normal residential use.
Specific Product Warranty Highlights
Refrigeration Appliances
Counter-Depth Models: 1-year parts and service; 5-year parts-only coverage for sealed system components (compressor, evaporator coil, condenser coil, filter drier)
Standard-Depth Models: 1-year parts and service; 5-year parts-only coverage
Built-In Models: 2-year parts and service; 5-year parts-only coverage
Wine & Beverage Coolers: 2-year parts and service; 5-year parts-only coverage
Refrigerator Drawers: 2-year parts and labor; 5-year parts-only coverage
Ice Makers: 2-year parts and labor; 5-year parts-only coverage
Range Hoods
Lifetime motor warranty
Ranges (Italian Burners and Burner Caps)
Lifetime limited warranty on burners and burner caps
Spark tip warranty includes parts and labor if defects result from materials or workmanship
Sinks, Faucets, and Shower Systems
Limited lifetime warranty
Cookware and Knives
Limited lifetime warranty
Terms and Conditions
Warranty applies to original purchasers using the product in a single-family residential dwelling
The warranty is non-transferable and begins on the original date of delivery
All service must be performed by certified and approved ZLINE service providers
Products must be accessible and unobstructed for service work
Warranty does not cover commercial use, improper installation, misuse, unauthorized modifications, accidents, or natural disasters
ZLINE’s liability is limited to the original purchase price of the product
For additional protection, extended warranties may be available at the time of purchase, providing longer-term peace of mind on parts and labor beyond standard coverage.

Order Confirmation:

Once you place your order, you will receive an order confirmation email. This confirms that we’ve received your order and pre-authorized your payment. As soon as your order is verified, we begin processing it for fulfillment. Most ZLINE orders are processed and ready to ship within 3–5 business days, though this may vary based on product availability.

Order Shipment:

You will receive a shipping confirmation with tracking information within 72 hours of your order leaving the warehouse. If you do not receive tracking details within six business days, please reach out to us at support@luxhomeappliances.com.

Delivery Timeframes:

• Parcel Delivery: Typically arrives within 7 to 10 business days
• Freight (LTL) Delivery: Typically arrives within 7 to 12 business days
• White Glove Delivery (if selected): Typically arrives within 10 to 14 business days

Please note these are estimated timeframes and are subject to change due to product availability, delivery location, or carrier conditions.

Curbside Delivery:

ZLINE’s standard delivery method is curbside drop-off, where the item is delivered to the end of your driveway. This service is free of charge for most orders. It does not include placement inside your home, unpacking, assembly, or debris removal. Ensure that someone is available to receive and move the product into your home.

Shipping Limitations:

ZLINE only ships to locations within the contiguous United States. Orders cannot be shipped to Alaska, Hawaii, Puerto Rico, or international destinations.
